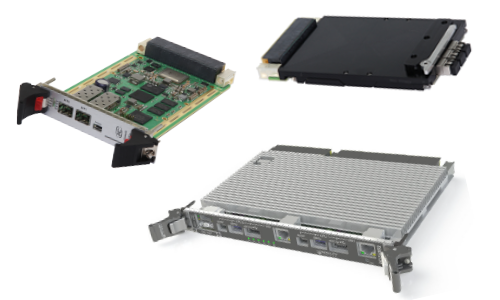

New Generation Network Switches
- Switch fabric modules supporting PCle/sRIO/1 or 10 or 40Gbps Ethernet/lnfiniBand etc
- Comprehensive network, configuration, management, and monitoring using Switchware graphical user interface software
- Security features: 802. l X Port authentication, Multicast/Broadcast limiting, STP/RSTP protocol, Virtual cable tester On-Line, User authenticatio (certificate HTTPS / Key SSH), Mirror traffic and log recording
- Option of Link-state tracking redundancy, that binds the link-state of a downstream interface (or ) to the linkstate of a upstream interface.
- Up to 32 Configurable 1/10/40 GbE Ports, fully managed layer 2+/3 routi ng.
- Configurable front and rear 1/0 port combinations with copper and/or fiber.
- Switch Management by on-board Freescale Processor & Embedded OS.
- TCP offload engine (TOE processor), Traffic filtering
- Configurations with support for 1Pv4 / 1Pv6 with advanced networking.
- Commercial, air cooled rugged & conduction cooled versions.
- Open standards-based form factors such as VPX, VME, cPCI & standalone.
