RFSoC, FPGAs and FPGA IP

• Programmable RFSoC

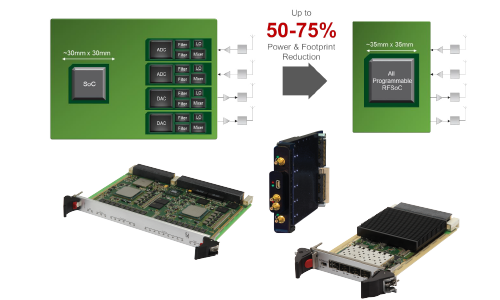

• Combines RF front-end with the MPSoC architecture on 16nm silicon
• Eight 12bit ADCs @ 4 GSPS, Eight 14bit DACs @ 6.4GSPS
• Eliminates Discrete ADCs, DACs, FPGAs-to-Analog Interface
• Reduce footprint & power
• RF-design in the digital domain for greater flexibility
• Dual MPO optical connectors as per ANSI/VITA 66.4

---

FPGAs

• Kintex-7, Virtex - 7, Zynq Soc, UltraScale/ UltraScale+ Family.
• Wide range of analog front ends - Up to 6 GHz A/Ds & D/As.
• Wide range of optical front ends - Up to 12/24, 10Gbs transceivers

---

FPGA IP

• A/D acquisition, D/A waveform generation, a controller for all data clocking and synchronization functions, a test signal generator & a PCle Gen3 interface
• DDCs and DUCs for interfacing to IF ports of RF up/down-converters
