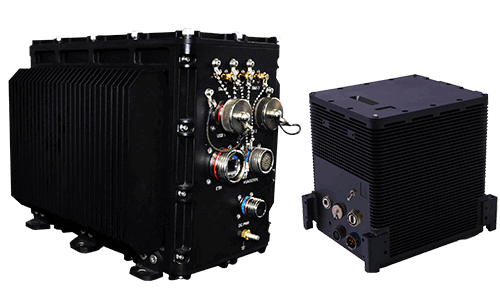

We offer a wide range of ATR chassis that are convection, conduction cooled and liquid cooled. Built with aluminum the chassis are suitable for rugged airborne applications and can operate in under extreme temperatures, dust and humidity. The chassis comes with different sizes and are equipped with various backplane options vis-à-vis 3U/6U (VPX / cPCI/ VME) and custom designs. The ATR Chassis are compliant to MIL-STD-810F for shock and vibration and MIL-STD-461E for EMC.

  • 3U/6U Conduction Cooled
  • Force Air Convection Cooled
  • 3U/6U Forced Air Conduction Cooled
  • 3U/6U Liquid Cooled

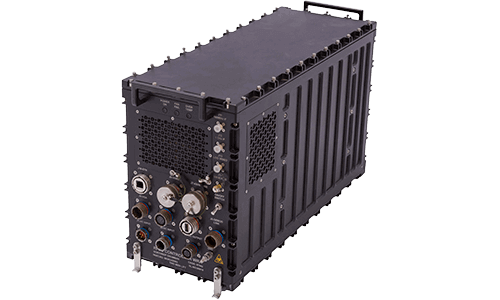

Rhino - 3U/6U Conduction Cooled

  • Conduction cooled ATR Chassis
  • Aluminum Construction
  • Milled Block Construction
  • IEEE 1101.20 Mechanical standards
  • 3U/6U Short/Short, Short/Long, Tall/Short & Tall/Long ATR Chassis
  • 3U/6U(VPX / cPCI/ VME) Backplane Options
  • AC / DC Input power supply
  • Input Transients as per MIL-STD-704E / MIL-STD-1275D
  • EMI/RFI Power Line Filtering
  • No cable Harness
  • MIL-C-38999 type Connectors for power and I/O Signals at rear
  • Hard Mount
  • Compliant to MIL-STD-810F and MIL-STD-461E
  • Custom Design options

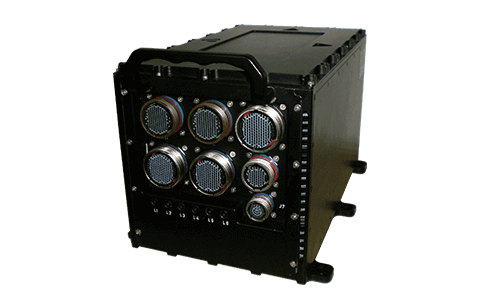

Unicorn - 3U/6U Air/Force Air Convection Cooled

  • Air / Convection cooled ATR Chassis
  • Aluminum Construction
  • Milled Block Construction
  • IEEE 1101.20 Mechanical standards
  • 6U High ATR Chassis
  • 6U,upto 10 Slots Card Area
  • 6U (VPX / cPCI/ VME) Backplane Options
  • AC / DC Input power supply
  • Input Transients as per MIL-STD-704E / MIL-STD-1275D
  • EMI/RFI Power Line Filtering
  • No cable Harness
  • MIL-C-38999 type Connectors for power and I/O Signals at rear
  • Hard Mount
  • Compliant to MIL-STD-810F and MIL-STD-461E
  • Custom Design options


Rhino - 3U/6U Forced Air Conduction Cooled

  • Forced Air Convection cooled ATR Chassis
  • Aluminum Construction
  • Milled Block Construction
  • IEEE 1101.20 Mechanical standards
  • 3U/6U High ATR Chassis
  • 3U/6U,upto 14 Slots Card Area
  • 3U/6U(VPX / cPCI/ VME) Backplane Options
  • AC / DC Input power supply
  • Input Transients as per MIL-STD-704E / MIL-STD-1275D
  • EMI/RFI Power Line Filtering
  • No cable Harness
  • MIL-C-38999 type Connectors for power and I/O Signals at rear
  • Hard Mount
  • Compliant to MIL-STD-810F and MIL-STD-461E
  • Custom Design options


Rhino - 3U/6U Liquid Cooled

  • Liquid cooled ATR Chassis
  • Aluminum Construction
  • Milled Block Construction
  • IEEE 1101.20 Mechanical standards
  • 3U/6U High ATR Chassis
  • 3U/6U,upto 10 Slots Card Area
  • 3U/6U (VPX / cPCI/ VME) Backplane Options
  • Single / Dual cooled side walls
  • AC / DC Input power supply
  • Input Transients as per MIL-STD-704E / MIL-STD-1275D
  • EMI/RFI Power Line Filtering
  • No cable Harness
  • MIL-C-38999 type Connectors for power and I/O Signals at rear
  • Hard Mount
  • Compliant to MIL-STD-810F and MIL-STD-461E
  • Custom Design options
